Features

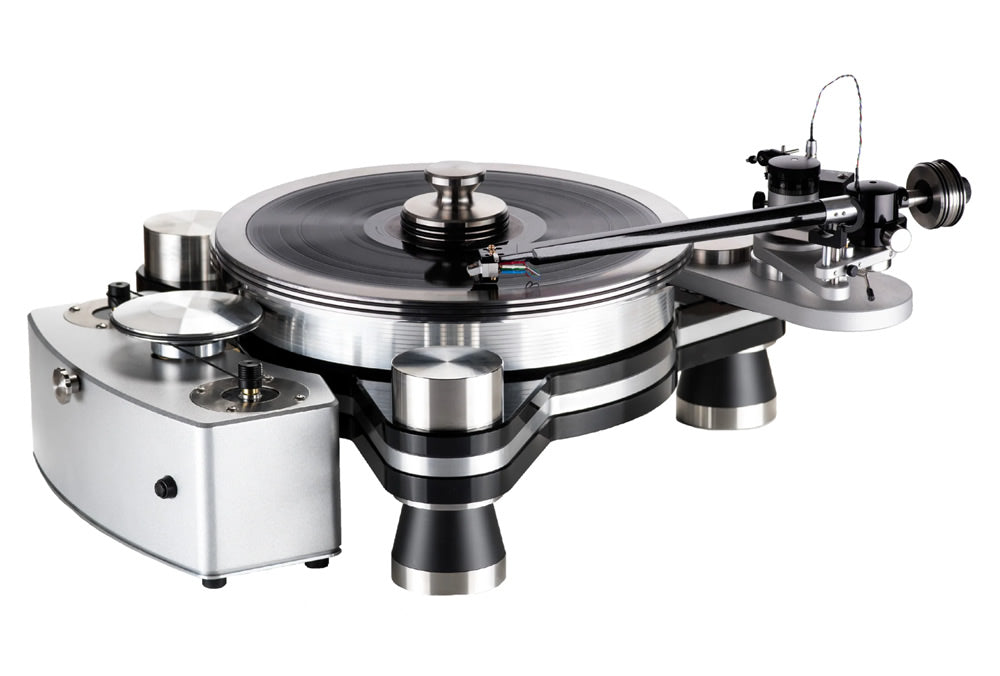

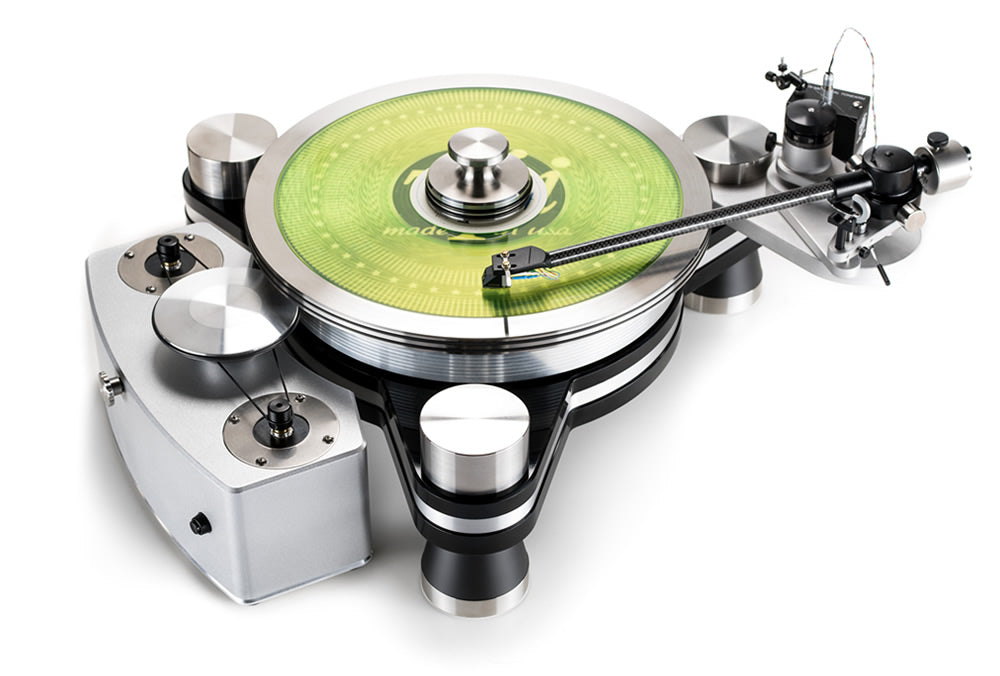

The Avenger chassis is three layers of bonded acrylic/aluminum/acrylic with damping material between layers.
3 stainless steel corner posts for both isolation and tonearm mounting and for mechanical grounding (up to 3 will fit).
Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.
Periphery Ring clamp for the ultimate in record warp reduction
The 300 RPM, 24 pole, AC synchronous motor in machined aluminum Rim Drive Motor assembly.
The Inverted bearing features a hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing, and sits on a PEEK thrust disc. The belt side load is placed at the center of the spinning bearing for zero teeter-totter effects.
The 20 pound 6061 aluminum platter has an accuracy of +/- .001” in a 39” circumference.
The motor pulley has an accuracy of +/- .0005” when leaving factory.

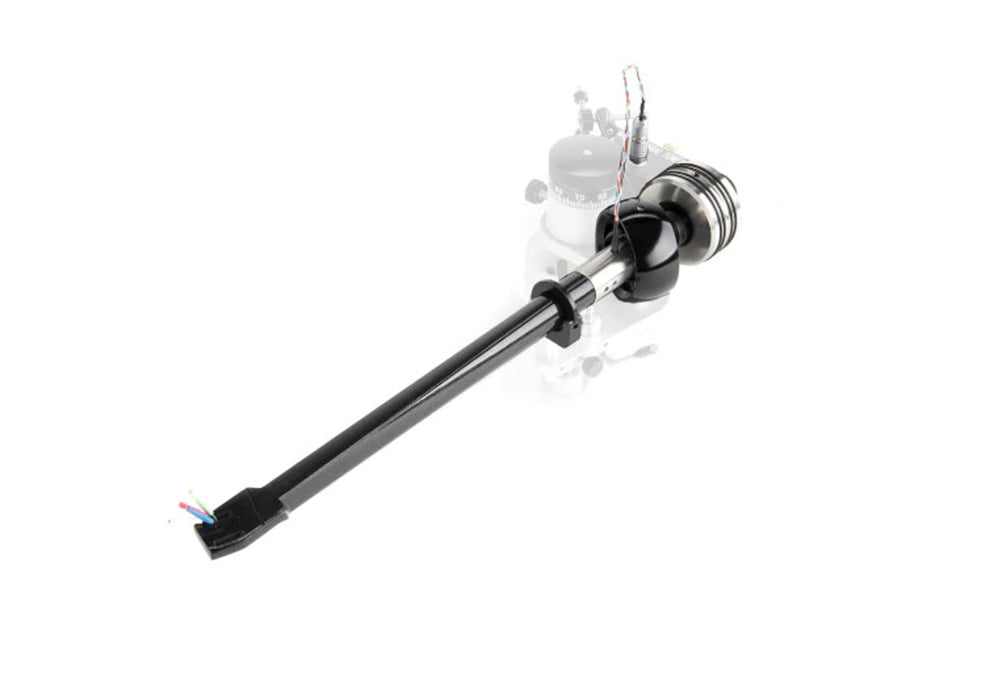

JMW 12-3DR with Nordost Reference wire.
